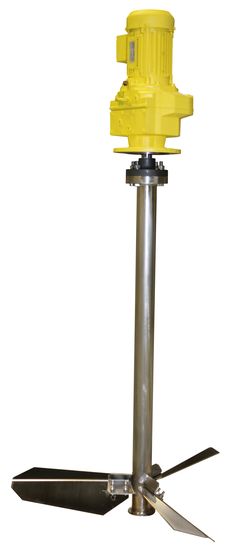

Mixers "Helisem VRH"
VRH mixers are fitted with a low footprint gear reducer, with several models life lubricated, they are designed to run 24/7.
Depending on size, the shaft is solid or tubular (for weight saving, with same mechanical resistance). The new shaft design allows lighter stress on shaft and a strong decreasing on corrosion risks. New HXP impellers are significantly lighter (-50%) with the same mechanical resistance.
With a high mixing efficiency and thanks to the mixer design, the mixer rotation speed is quite low, for a better respect on sensitive products and a more stable equipment.
For the same pumping flow rate, we note an energy saving of over 70% - the cost effective reduction is excellent. The blade mounting is simplified and safer.
- tank volume: 2,000 ... 100,000 L
- impeller diameter: 600 ... 2350 mm
- rated power: 0.18 ... 3 kW
- rotation speed: 16 ... 76 rpm
- material: SS316L
- 1 or 2 propellers
- 50Hz or 60 Hz
- ATEX Zone 1 or 2
- frequency inverter
- operation in tropical a/o outside area
